Nkag siab Nres Nres: Cheebtsam, Hom, thiab Evolution

Nres pads yog ib qho tseem ceeb ntawm kev nyab xeeb nyob rau hauv lub tshuab nres disc, ua raws li cov khoom siv kev sib txhuam kev sib txhuam uas clamps tiv thaiv lub rotor tig los hloov lub tsheb lub zog kinetic zog rau hauv thermal zog, yog li qeeb lossis nres lub tsheb. Lawv qhov kev ua tau zoo cuam tshuam ncaj qha rau kev ncua deb, pedal xav, theem suab nrov, tsim plua plav, thiab rotor hnav. Nkag siab txog lawv txoj kev tsim kho, hom, thiab kev hloov pauv yog qhov tseem ceeb rau cov kws tshaj lij kev lag luam thiab cov neeg siv khoom paub zoo ib yam.

Kev tsim kho thiab cov ntsiab lus tseem ceeb:

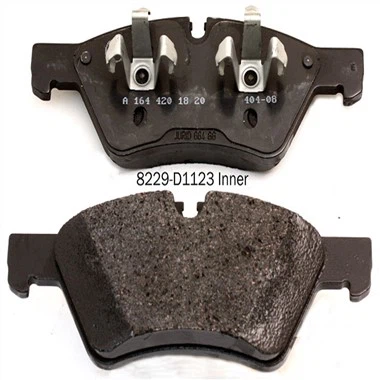

Lub nres nres yog ntau tshaj li qhov thaiv ntawm cov khoom. Nws yog sophisticated sib dhos:

· Backing Phaj: Feem ntau yog ua los ntawm cov hlau, nws muab cov qauv kev ncaj ncees thiab xa cov clamping quab yuam los ntawm caliper piston.

· Cov khoom sib txhuam: Lub plawv ntawm lub ncoo, khi los yog riveted rau lub phaj nraub qaum. Qhov kev sib xyaw ua ke no txiav txim siab lub ncoo qhov kev ua tau zoo. Nws formulation muaj xws li:

· Binders: (xws li, phenolic resins) uas tuav cov sib tov ua ke.

· Cov khoom siv: (xws li, aramid fibers, steel wool) rau lub zog thiab ruaj khov.

· Friction Modifiers: (piv txwv li, hlau hais, abrasive compounds) kom zoo - kho qhov coefficient ntawm kev sib txhuam.

· Fillers: (xws li barium sulfate, vermiculite) los tswj tus nqi, porosity, thiab dampen vibrations.

· Shims: nyias txheej ntawm cov roj hmab los yog hlau txuas rau sab nraum qab ntawm lub phaj nraub qaum kom dampen vibrations thiab txo tus brake squeal.

· Hnav Sensor: Ib qho khoom siv hluav taws xob me me ntawm qee lub ncoo uas tawm suab ceeb toom thaum cov khoom sib txhuam ze ze.

Thawj Hom Nres Nres:

Cov ntaub qhwv tau muab cais los ntawm lawv cov khoom sib txhuam, txhua qhov muaj qhov zoo sib xws thiab kev lag luam tawm -tawm:

1. Tsis yog-Asbestos Organic (NAO): Ua los ntawm kev sib xyaw ntawm cov khoom siv organic xws li iav, roj hmab, Kevlar, thiab carbon, ua ke nrog cov resins thiab fillers. Lawv feem ntau softer, ntsiag to, thiab tsawg abrasive ntawm rotors. Txawm li cas los xij, lawv hnav sai dua, ua haujlwm tsis tu ncua hauv qhov kub thiab txias, thiab tuaj yeem tsim cov plua plav ntau dua. Feem ntau nyob rau hauv niaj hnub neeg nrog caij tsheb.

2. Semi-Hloov: Muaj 30-65% hlau (xws li hlau, hlau, tooj liab) sib xyaw nrog graphite lubricants thiab muab tub lim. Lawv muab cov cua kub zoo tshaj plaws, ruaj khov pedal xav, thiab kev ua haujlwm zoo nyob rau hauv qhov kub thiab txias, ua rau lawv haum rau cov tsheb hnyav thiab kev ua haujlwm nruab nrab ntawm kev tsav tsheb. Cov downsides muaj xws li nce rotor hnav, suab nrov dua, thiab tsis mob khaub thuas tom.

3. Ceramic: Formulated los ntawm ceramics fibers, tsis yog -ferrous muab tub lim cov ntaub ntawv, bonding agents, thiab tej zaum yuav muaj xws li me me tooj liab (txawm hais tias kev hloov mus rau tooj liab-dawb). Lawv tau dhau los ua qhov kev xaiv zoo tshaj plaws rau ntau tus neeg tsav tsheb vim lawv txoj haujlwm huv (cov plua plav tsawg), kev ua haujlwm ntsiag to, kev sib txhuam zoo sib xws ntawm qhov kub thiab txias, thiab lub neej ntev. Lawv yooj yim dua ntawm rotors tab sis feem ntau hais kom tus nqi siab dua thiab tuaj yeem muaj qhov qis qis qis qis dua li qee cov hlau sib txuas.

4. Tsawg-Metallic NAO: Ib qho sub- pawg ntawm cov ntaub qhwv organic uas muaj cov feem pua ​​​​me me ntawm cov hlau (feem ntau yog hlau lossis tooj liab) txhawm rau txhim kho cov cua sov hloov thiab ua kom tsis muaj zog. Lawv muab qhov sib npaug ntawm cov organic thiab semi-cov yam ntxwv hlau.

Kev ntsuas kev ua tau zoo thiab kev xaiv:

Kev xaiv lub ncoo kom raug suav nrog kev ntsuas ntau yam:

· Coefficient of Friction (μ): Rated as "C" (txias) thiab "H" (kub) ntawm qhov ntsuas ntawm qis (piv txwv li, C) mus rau siab dua (piv txwv li, F lossis G). Lub siab dua μ muab ntau zog nres tab sis tuaj yeem cuam tshuam rau kev hloov pauv.

· Suab nrov, plua plav, thiab Rotor Hnav: Feem ntau sib txuas. Softer organic/ceramic pads zoo li yuav ntsiag to thiab softer ntawm rotors tab sis tej zaum yuav plua plav ntau dua. Cov tawv tawv tawv tawv tuaj yeem ua suab nrov thiab ntau dua abrasive.

· Fade Resistance: Lub peev xwm los tswj kev ua haujlwm ntawm qhov kub thiab txias, tseem ceeb heev rau kev thauj mus los, kev tsav tsheb hauv roob, lossis kev siv kev ua haujlwm.

· Tsav Hom thiab Daim Ntawv Thov Tsheb: Ib hnub - tsav tsheb muaj ntau yam kev xav tau ntau dua li lub tsheb ua kis las lossis hnyav - lub luag haujlwm nqa.

Txoj Kev Ua Ntej:

Kev lag luam tab tom hloov zuj zus tshaj cov kab ke no. Lub laub rau tooj liab- cov qauv dawb yog tsav kev tsim kho tshiab hauv cov khoom siv ceramic thiab cov khoom siv sib xyaw tshiab. Tsis tas li ntawd, qhov nce ntawm EVs qhia txog cov ntsiab lus tshiab: cov ntaub qhwv yuav tsum tiv thaiv corrosion los ntawm kev siv tsis siv neeg (vim yog regen braking), tuav qhov hnyav ntawm cov pob roj teeb, thiab ua haujlwm ntau dua ntsiag to kom phim lub tsev nyob ntsiag to ntawm EV. Lub neej yav tom ntej ntawm cov pawm nres yog nyob rau hauv cov txheej txheem siab tshaj plaws, ua kom haum raws li cov kev xav tau ib txhij rau kev nyab xeeb, kev ua raws li ib puag ncig, kev ua neej ntev, thiab kev ua kom zoo rau cov neeg siv kev paub -ib qho nyuaj tab sis tseem ceeb engineering kev sib tw ntawm lub plawv ntawm kev mus ncig niaj hnub no.
